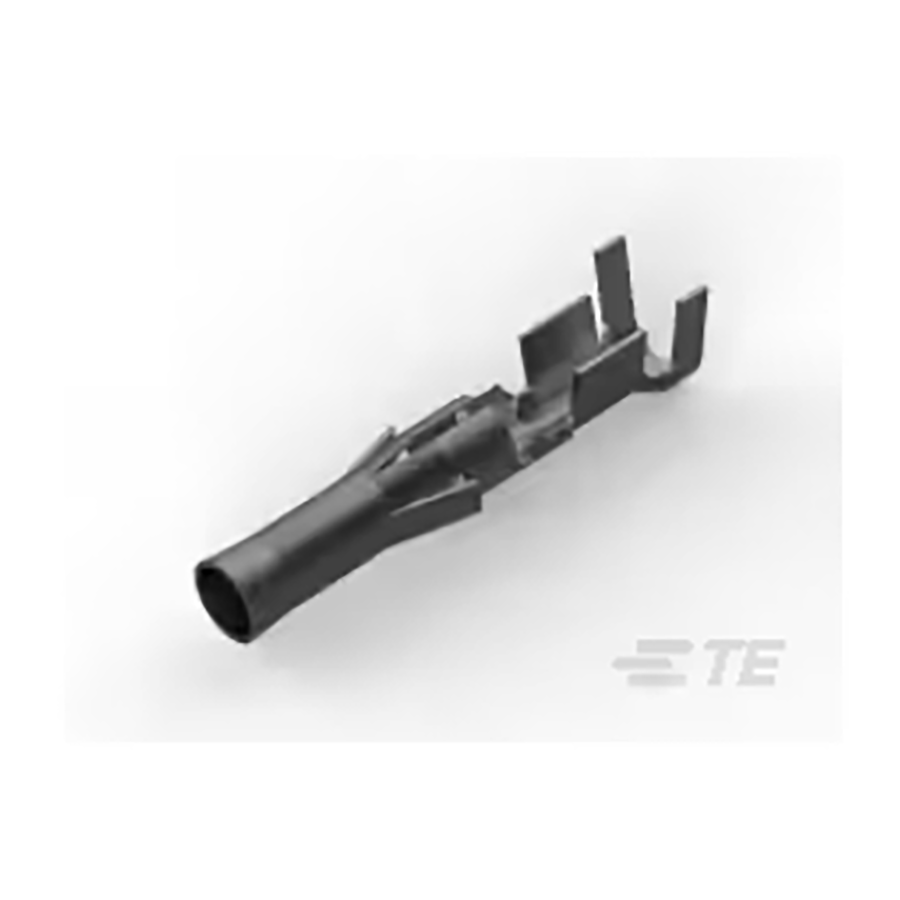

350415-1
Manufacturer:
TE Connectivity
Mfr.Part #:
350415-1
Datasheet:
Description:
IC and Component Sockets Cable Socket Pitch:4.31 mm
| Parameter | Value |
|---|---|
| Length | 19.81 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 4.77 mm |
| Packaging | Reel |
| Voltage Rating | 250 V |
| Depth | 4.45 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 4.31 mm |
| REACH SVHC | Unknown |
| Contact Plating | Pre-Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.31 mm |
| Number of Terminals | 1 |
| Current Rating | 13 A |
| Max Current Rating | 13 A |
| Max Voltage Rating (DC) | 250 V |
| Approvals | UL |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Socket (Female) |
| Shielding | Unshielded |
| Number of Contacts | 1 |
| ELV | Compliant |
| Connector Type | Socket |
| Wire/Cable Gauge | 20 AWG to 14 AWG |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Wire/Cable Type | Discrete |
| Number of Ports | 1 |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Style | Socket |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 13 A |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 14 AWG |
| Insulation Diameter | 3.556 mm |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Retention | With |
| Contact Finish - Mating | |
| Termination Style | Crimp |
Stock: 34608
Distributors
pcbx
pcbxUnit Price$0.21838
Ext.Price$0.21838
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21838 | $0.21838 |
| 10 | $0.10919 | $1.09190 |
| 50 | $0.08399 | $4.19950 |
| 100 | $0.06461 | $6.46100 |
| 500 | $0.04970 | $24.85000 |
| 1000 | $0.03823 | $38.23000 |
| 3000 | $0.02941 | $88.23000 |
| 5000 | $0.02741 | $137.05000 |
| 10000 | $0.02555 | $255.50000 |
| 30000 | $0.02381 | $714.30000 |
| 50000 | $0.02219 | $1109.50000 |
| 100000 | $0.02069 | $2069.00000 |
